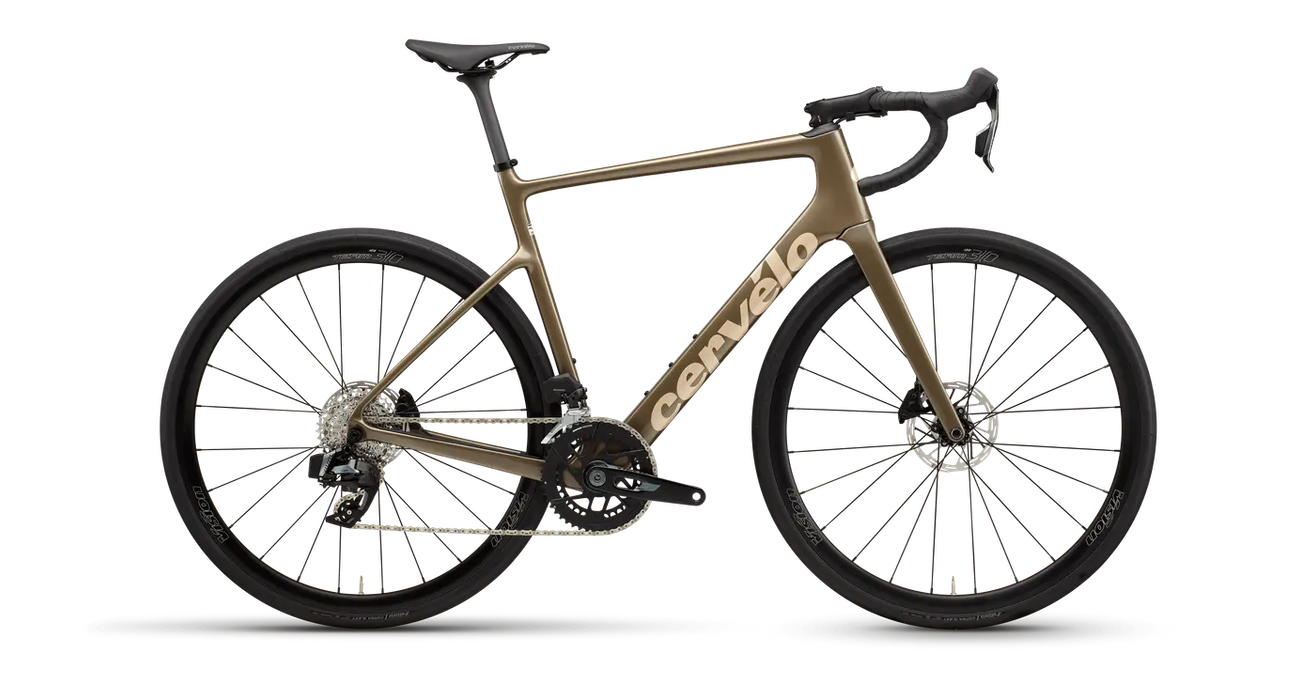

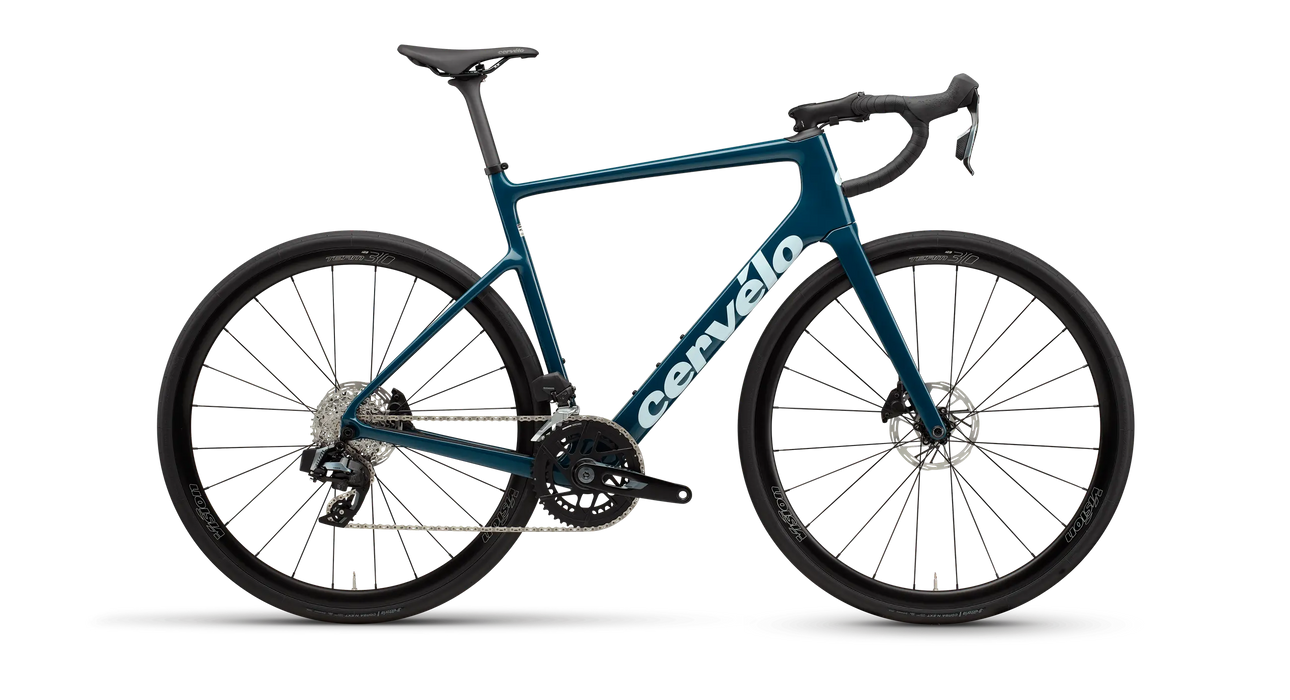

Cervélo Caledonia Rival AXS Road Bike 2027
For additional information, please email sarasota@playtri.com or text us at 941-730-5565.
Shipping and Financing Available
*Specifications subject to change without notice from manufacturers
For additional information, please email sarasota@playtri.com or text us at 941-730-5565.
Shipping and Financing Available
*Specifications subject to change without notice from manufacturers
Caledonia is a high-performance road bike with endurance-oriented geometry that delivers everything you’d expect from a Cervélo. It’s designed for all-season riders, fondo racers, and those who’ve just been bitten by the cycling bug. Clean, aerodynamic lines, hidden cables, and a highly-tuned carbon fiber layup add up to a bike that’s fast enough for spirited group rides, comfortable enough for all-day efforts, and looks right at home at every coffee stop.
Unlike the Caledonia-5's fully internal system, the Caledonia offers mechanic-friendly cable and hose routing that supports both fully-integrated setups (with ST31/32 and HB18) and our standard semi-external routing.
With a 1013mm wheelbase, 415mm chainstays, and 72° head tube angle, the Caledonia delivers stable and predictable handling suitable for both casual riders and those hunting fondo and brevet glory. We also updated the trail figure to optimize the geometry for 32mm-wide tires.
The T47a threaded bottom bracket simplifies service for home mechanics, and ensures long-term performance.
On a big ride, you’ll encounter roads that are…less than maintained. The Caledonia’s 36mm tire clearance allows you to mount up road-smoothing, comfortable rubber that makes a big difference when the odometer hits triple digits. And for the year-round, all-weather pedalers, Caledonia comes with fender mounts that make it easy to add full-coverage fenders.
| Sizes | 48cm, 51cm, 54cm, 56cm, 58cm, 61cm |
|---|---|
| Weight | 8.31 kgs |
| Fork | Cervélo All-Carbon, Tapered Caledonia Fork |
| Handlebar | Cervélo HB23 alloy 400mm |
| Alternate Handlebar | Cervélo AB07 Alloy, 31.8mm clamp |
| Handlebar Sizing | 48cm - 38cm 51cm - 38cm 54cm - 40cm 56cm - 40cm 58cm - 42cm 61cm - 42cm |
| Stem | Cervélo ST36 Alloy |
| Stem Sizing | Size 48 - 80mm Size 51 - 90mm Size 54 - 100mm Size 56 - 100mm Size 58 - 110mm Size 61 - 110mm |
| Seatpost | Cervélo SP19 Carbon 27.2 |
| Seatpost Sizing | Size 48 - 0mm Size 51 - 0mm Size 54 - 0mm Size 56 - 0mm Size 58 - 15mm Size 61 - 15mm |
| Saddle | Cervélo Saddle |
| Bottom Bracket | SRAM DUB, T47 BBright |
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
| Front Thru Axle | Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length |
| Rear Thru Axle | Cervélo Aero Thru Axle Rear, M12x1.75mm, 170.5mm length |
| Front Wheel | Vision Team i23 Disc, 23mm IW, direct pull, 12x100mm, centerlock, tubeless compatible |
| Rear Wheel | Vision Team i23 Disc, 23mm IW, direct pull, 12x142mm, XDR freehub, centerlock, tubeless compatible |
| Tires | Vittoria Corsa N.EXT TLR G2.0 700x32c |
| Shifter/Brake Levers | SRAM Rival AXS E1 |
| Crankset | SRAM Rival AXS E1, 48/35T, DUB |
| Crank Sizing | Size 48 - 165mm Size 51 - 165mm Size 54 - 170mm Size 56 - 170mm Size 58 - 172.5mm Size 61 - 172.5mm |
| Chain | SRAM Rival E1 |
| Cassette | SRAM Rival D1, 10-36T, 12-Speed |
| Front Derailleur | SRAM Rival AXS E1 |
| Rear Derailleur | SRAM Rival AXS E1 |
| Brake Rotors | SRAM Paceline Centerlock |
| Accessories | - Cervélo Removeable Fender Mounts - Cervélo Front Computer/Accessory Mount 810 - Cervélo Rear Accessory Mount |
| 48 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Reach | mm | 360 | 369 | 378 | 387 | 396 | 405 |
| Stack | mm | 505 | 530 | 555 | 580 | 605 | 630 |
| Head Tube Angle | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
| Front Center | mm | 579.4 | 581.7 | 591.5 | 608.5 | 626 | 643 |
| Bottom Bracket Drop | mm | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Head Tube Length | mm | 89.5 | 109.9 | 136 | 162.3 | 191.2 | 217.5 |
| Top Tube Length | mm | 502 | 522 | 543 | 565 | 581 | 598 |
| Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Standover Height | mm | 701 | 741 | 773 | 796 | 823 | 847 |
| Trail | mm | 60 | 60 | 60 | 60 | 60 | 60 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset | mm | 59 | 53 | 50 | 50 | 50 | 50 |
| Wheelbase | mm | 982.2 | 984.5 | 995.2 | 1012.3 | 1030.7 | 1047.8 |
| Chainstay Length | mm | 415 | 415 | 415 | 415 | 415 | 415 |
