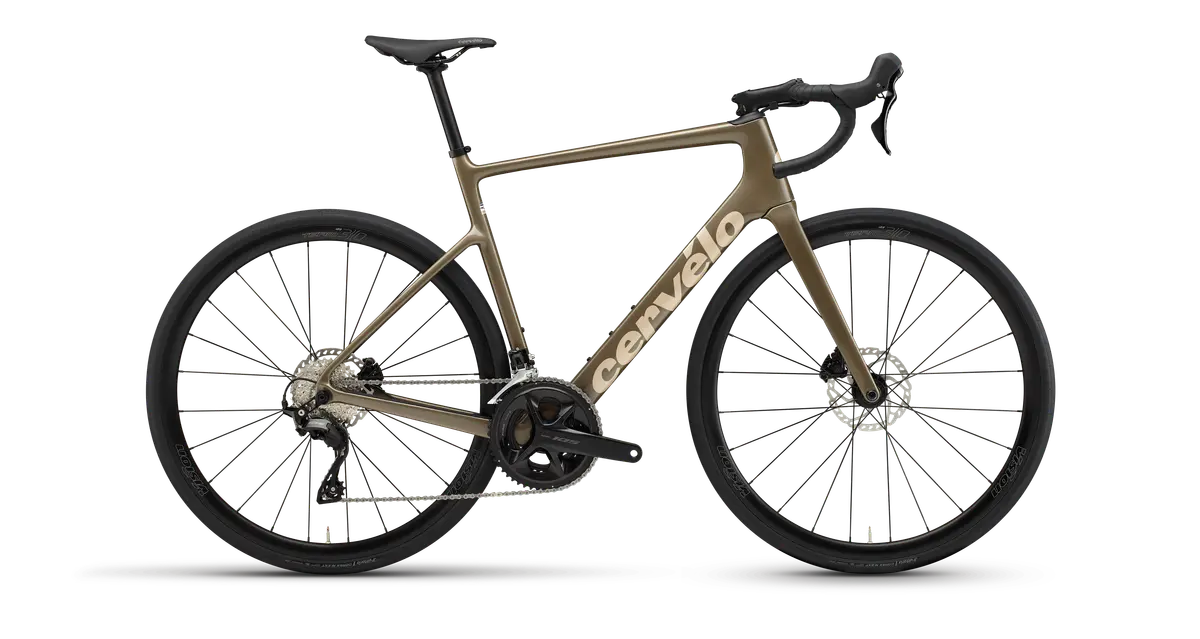

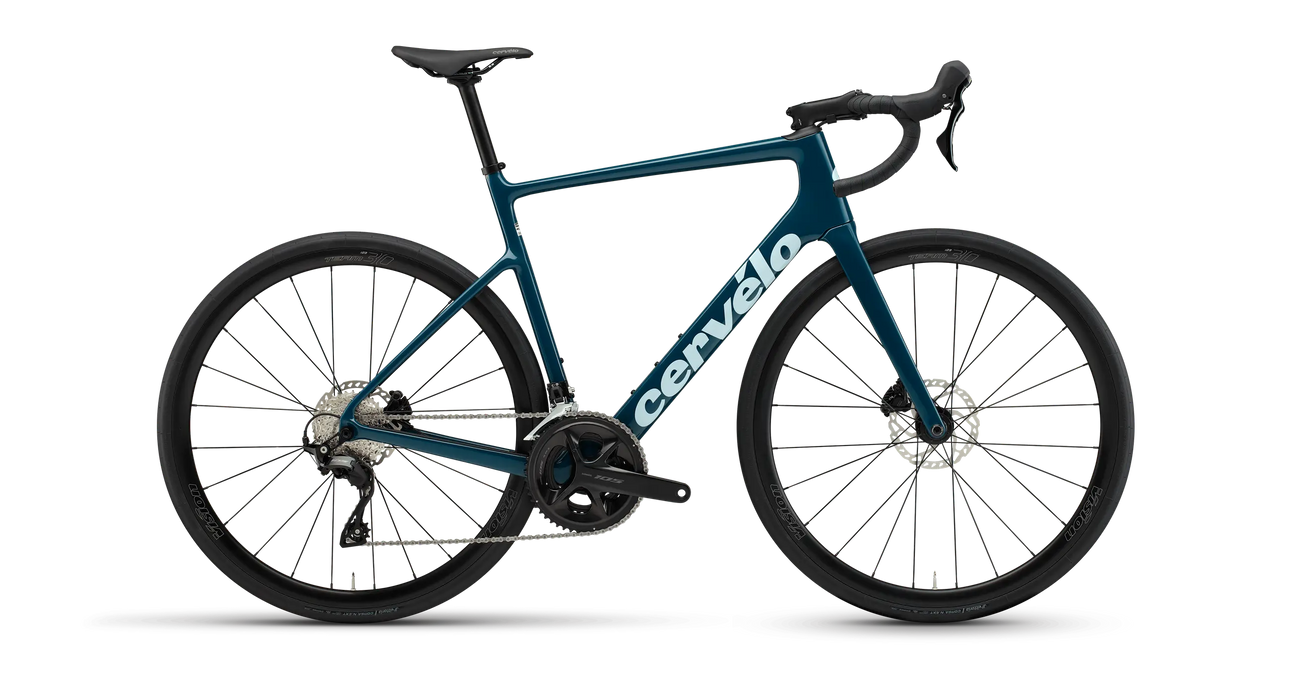

Cervélo Caledonia 105 Road Bike 2027
For additional information, please email sarasota@playtri.com or text us at 941-730-5565.
Shipping and Financing Available
*Specifications subject to change without notice from manufacturers
For additional information, please email sarasota@playtri.com or text us at 941-730-5565.
Shipping and Financing Available
*Specifications subject to change without notice from manufacturers
Caledonia is a high-performance road bike with endurance-oriented geometry that delivers everything you’d expect from a Cervélo. It’s designed for all-season riders, fondo racers, and those who’ve just been bitten by the cycling bug. Clean, aerodynamic lines, hidden cables, and a highly-tuned carbon fiber layup add up to a bike that’s fast enough for spirited group rides, comfortable enough for all-day efforts, and looks right at home at every coffee stop.

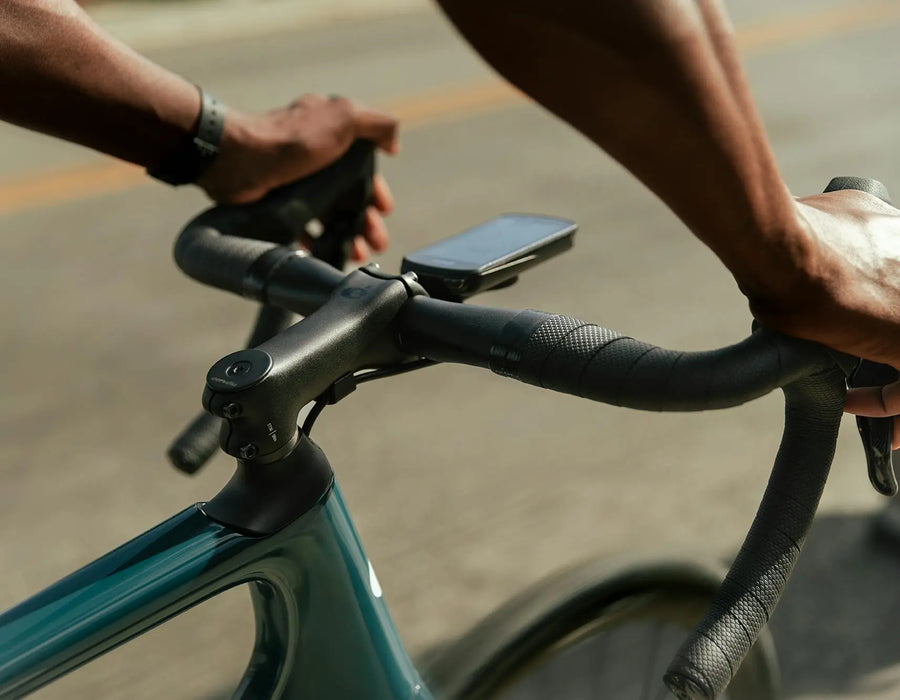

Unlike the Caledonia-5's fully internal system, the Caledonia offers mechanic-friendly cable and hose routing that supports both fully-integrated setups (with ST31/32 and HB18) and our standard semi-external routing.
With a 1013mm wheelbase, 415mm chainstays, and 72° head tube angle, the Caledonia delivers stable and predictable handling suitable for both casual riders and those hunting fondo and brevet glory. We also updated the trail figure to optimize the geometry for 32mm-wide tires.
The T47a threaded bottom bracket simplifies service for home mechanics, and ensures long-term performance.

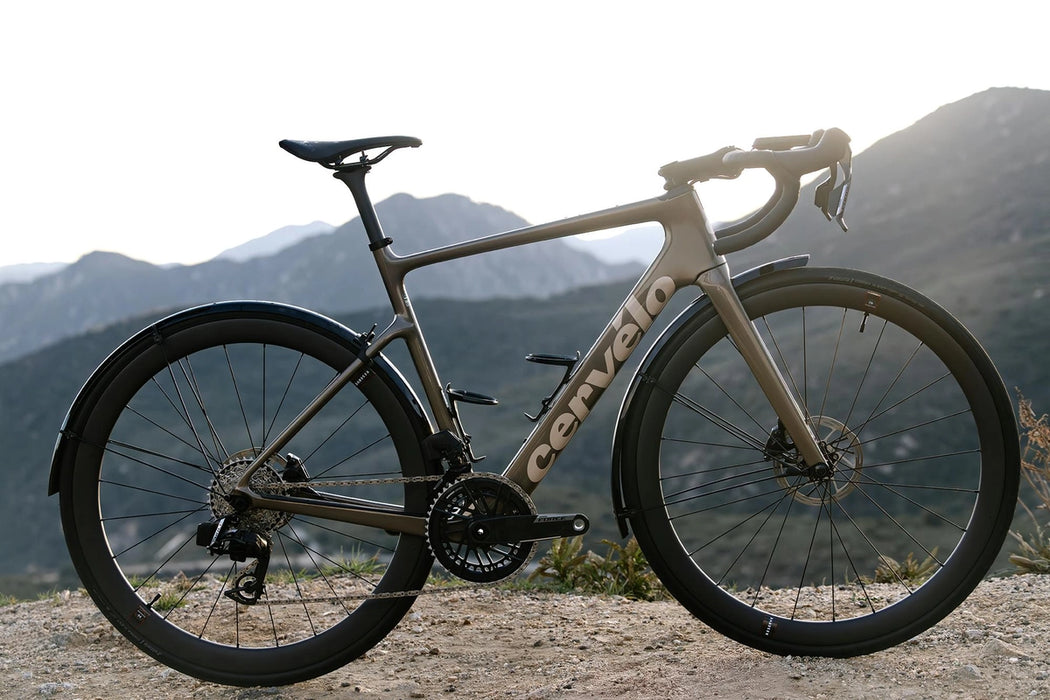

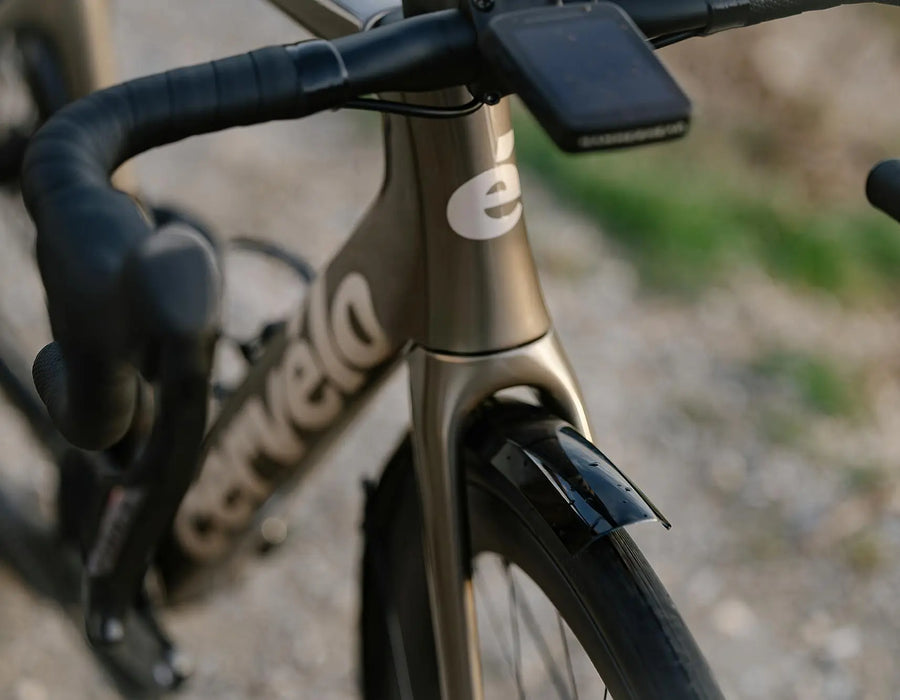

On a big ride, you’ll encounter roads that are…less than maintained. The Caledonia’s 36mm tire clearance allows you to mount up road-smoothing, comfortable rubber that makes a big difference when the odometer hits triple digits. And for the year-round, all-weather pedalers, Caledonia comes with fender mounts that make it easy to add full-coverage fenders.
| Color | Mocha, Nightshift |
| Fork | Cervélo All-Carbon, Tapered Caledonia Fork |
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
| Seatpost | Cervélo Alloy 27.2 |
| Left Shifter/Brake | Shimano 105, R7120 |
| Right Shifter/Brake | Shimano 105, R7120 |
| Rear Derailleur | Shimano 105, R7100, 12 speed |
| Front Derailleur | Shimano 105, R7100, 12 speed |
| Brake Calipers | Shimano 105 |
| Brake Rotors | Shimano RT66 6-Bolt |
| Stem Sizing |
Size 48 - 80mm Size 51 - 90mm Size 54 - 100mm Size 56 - 100mm Size 58 - 110mm Size 61 - 110mm |
| Crankset | Shimano 105 R7100, 52/36T, 12 Speed |
| Bottom Bracket | FSA, T47 BBright for 24mm spindle |
| Handlebar | Cervélo HB23 alloy 400mm |
| Stem | Cervélo ST36 Alloy |
| Saddle | Cervélo Saddle |
| Cassette | Shimano 105, 11-34, 12 Speed |
| Chain | Shimano M7100, 12 speed |
| Front Wheel | Vision Team i23 Disc, 23mm IW, J-Bend, 12x100mm, 6 bolt, tubeless compatible |
| Rear Wheel |
Vision Team i23 Disc, 23mm IW, J-Bend, 12x142mm, HG freehub, 6 bolt, tubeless compatible |
| Tire | Vittoria Corsa N.EXT TLR G2.0 700x32c |
| Accessories |
- Cervélo Removeable Fender Mounts - Cervélo Front Computer/Accessory Mount 810 |
| 48 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Reach | mm | 360 | 369 | 378 | 387 | 396 | 405 |
| Stack | mm | 505 | 530 | 555 | 580 | 605 | 630 |
| Head Tube Angle | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
| Front Center | mm | 579.4 | 581.7 | 591.5 | 608.5 | 626 | 643 |
| Bottom Bracket Drop | mm | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Head Tube Length | mm | 89.5 | 109.9 | 136 | 162.3 | 191.2 | 217.5 |
| Top Tube Length | mm | 502 | 522 | 543 | 565 | 581 | 598 |
| Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Standover Height | mm | 701 | 741 | 773 | 796 | 823 | 847 |
| Trail | mm | 60 | 60 | 60 | 60 | 60 | 60 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset | mm | 59 | 53 | 50 | 50 | 50 | 50 |
| Wheelbase | mm | 982.2 | 984.5 | 995.2 | 1012.3 | 1030.7 | 1047.8 |
| Chainstay Length | mm | 415 | 415 | 415 | 415 | 415 | 415 |
