With advancements in our carbon layup, our engineers have made the new Synapse 20% more compliant than its already butter-smooth predecessor, ensuring you feel 100% more comfortable even on the roughest roads.
Like A Glove
A great fit and feel makes for a great ride. And with our Proportional Response Construction, every rider gets that as standard. From the carbon layup through to the geometry, everything on Synapse has been tuned and tested by frame size. So that your bike works in harmony with you to give the best possible ride for you and your height.
Bring it all, bring it on

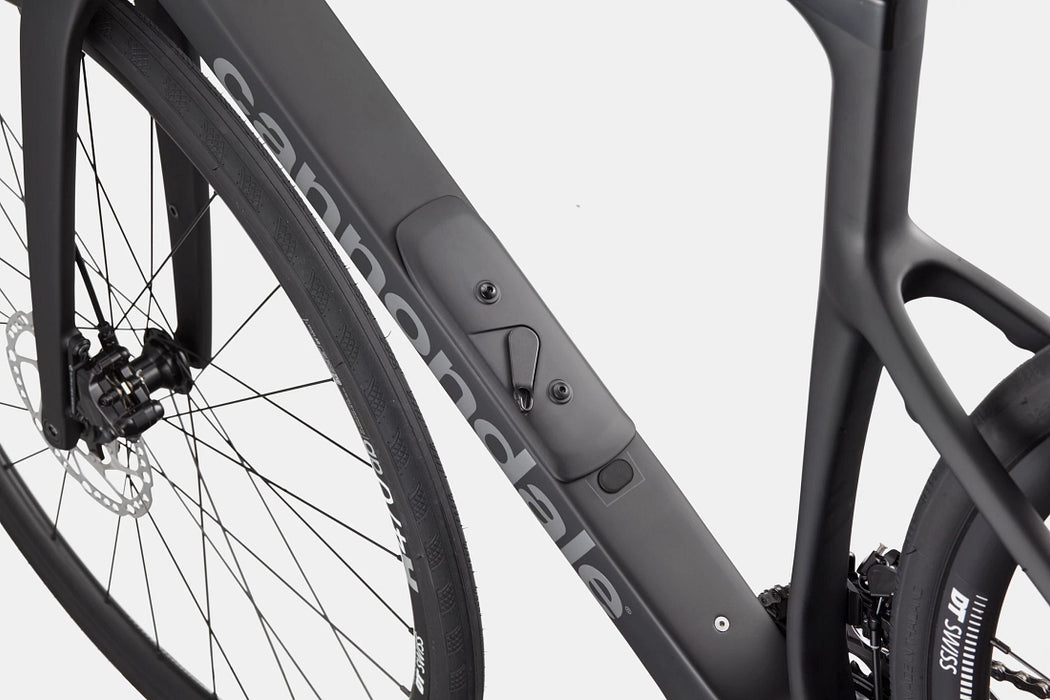

Our all-new StashPort storage system in the downtube is there when you need it and hidden when you don’t. Paired with its StashBag buddy, you can bring along your ride essentials and know that they’ll be secure, whatever you get up to out there. Meanwhile, best-in-class tire clearance lets you take the idea of riding for longer to a whole new level.
DETAILS
-
-

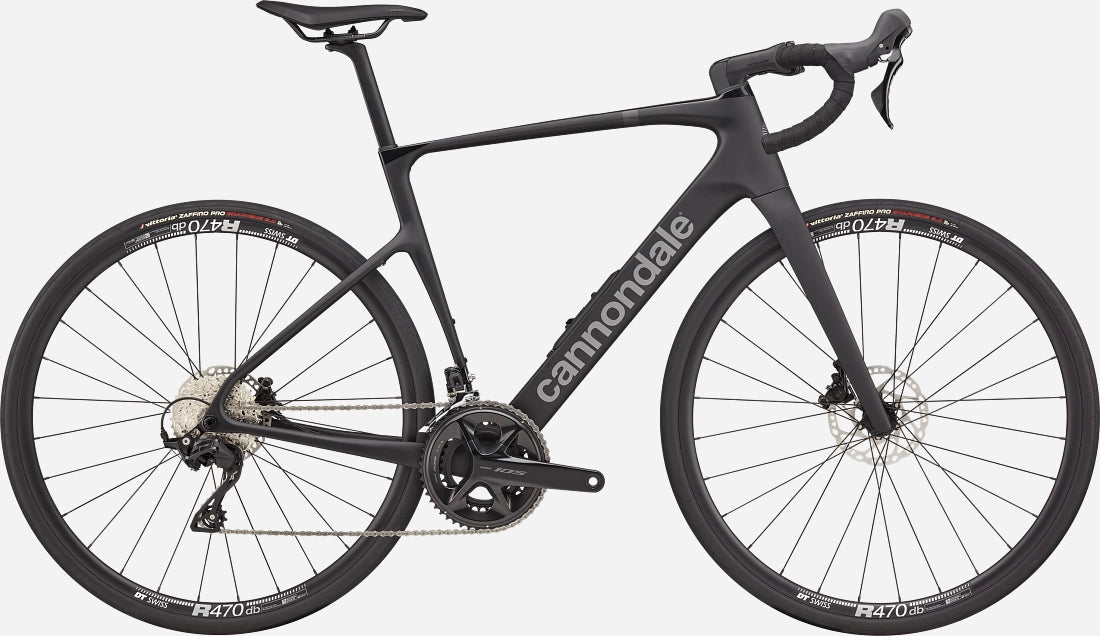

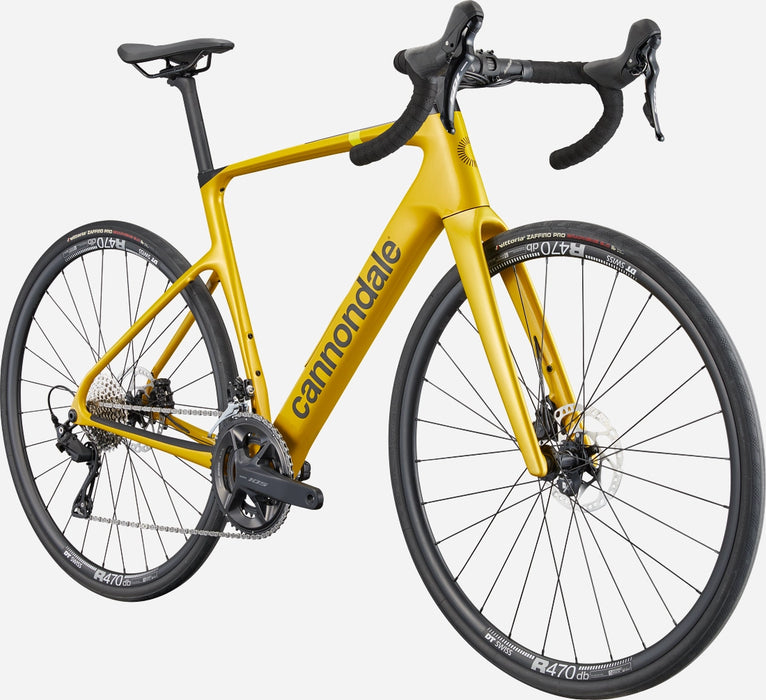

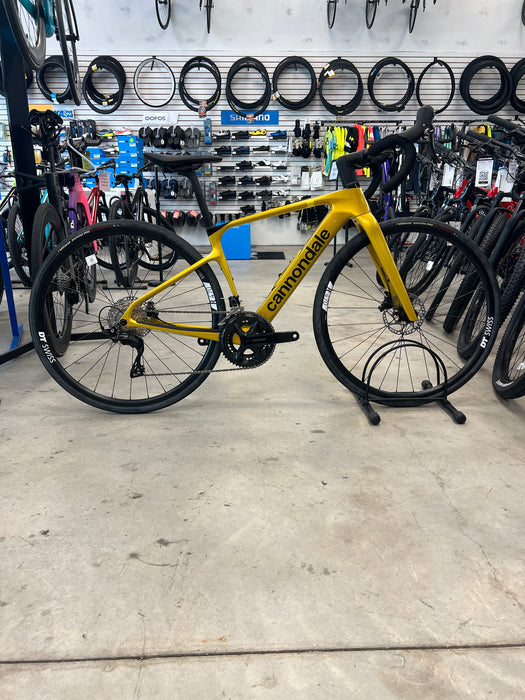

Model Name
Synapse Carbon 5
-
FRAMESET
-
Frame
Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
-
Fork
Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
-
Headset
Integrated, 1-1/8" - 1-1/2"
DRIVETRAIN
-

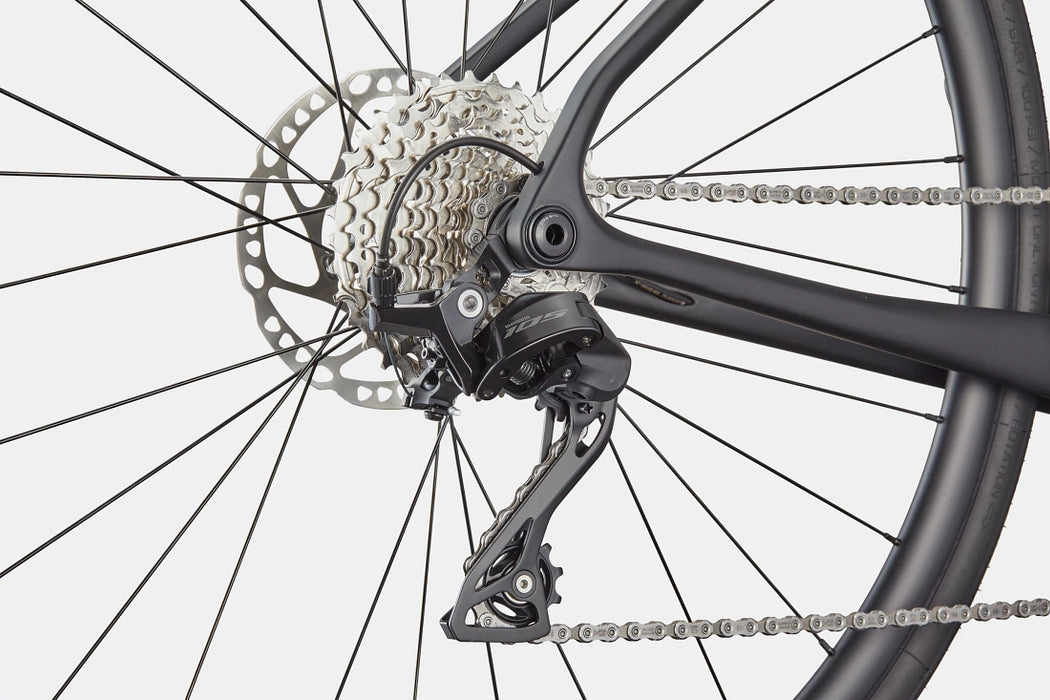

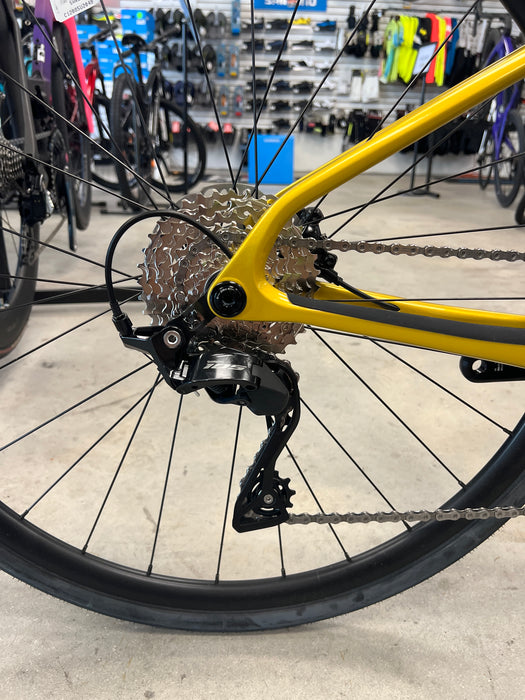

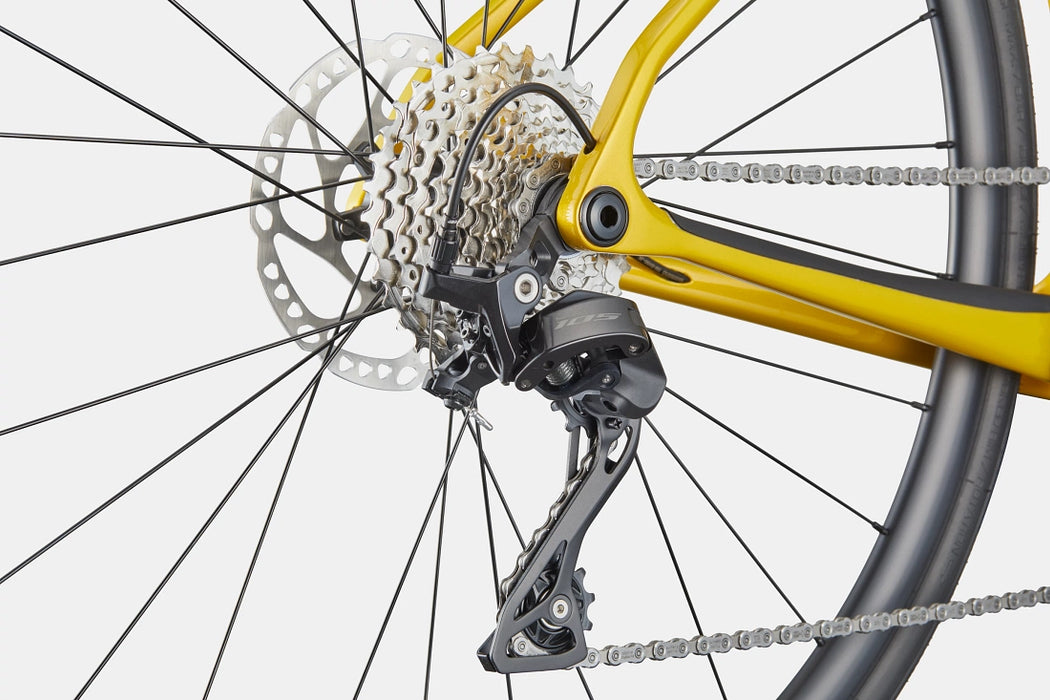

Rear Derailleur
Shimano 105 7100
-
Front Derailleur
Shimano 105 7100, braze-on
-
Shifters
Shimano 105 7100, 12-speed
-
Chain
Shimano 105 7100, 12-speed
-

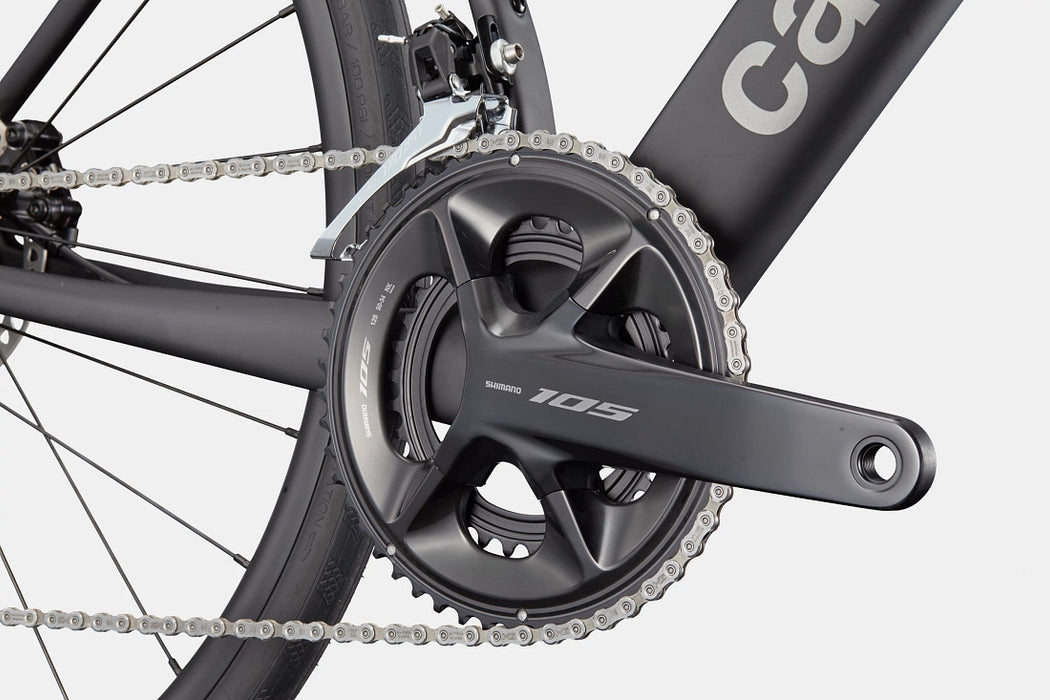

Crank
Shimano 105 7100, BSA, 50/35
-
Rear Cogs
Shimano 105 7100, 11-36, 12-speed
-
Bottom Bracket
Shimano BSA 68
BRAKES
-
Brakes
Shimano 105 7170 hydraulic disc, 160/160 RT64 centerlock rotors
-
Brake Levers
Shimano 105 7120 hydraulic disc
WHEELS
-
Rims
DT Swiss R470 DB, 28h
-
Spokes
Stainless Steel, 14g
-
-
-
Hubs
(F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock
-
Tires
Vittoria Zaffiro Pro V, 700x32c
COMPONENTS
-

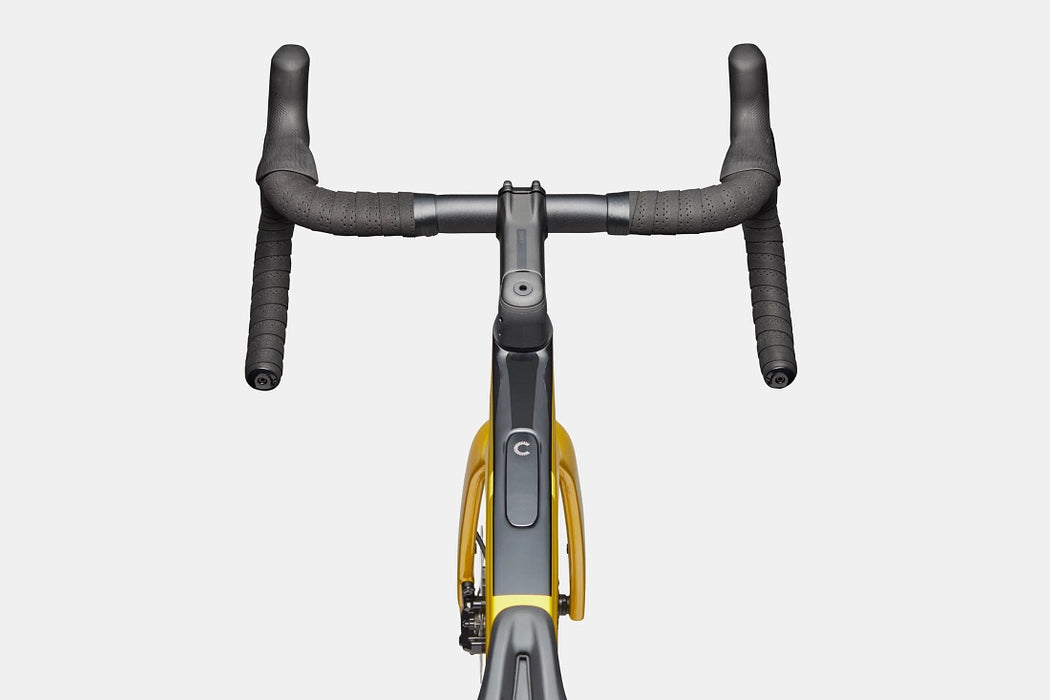

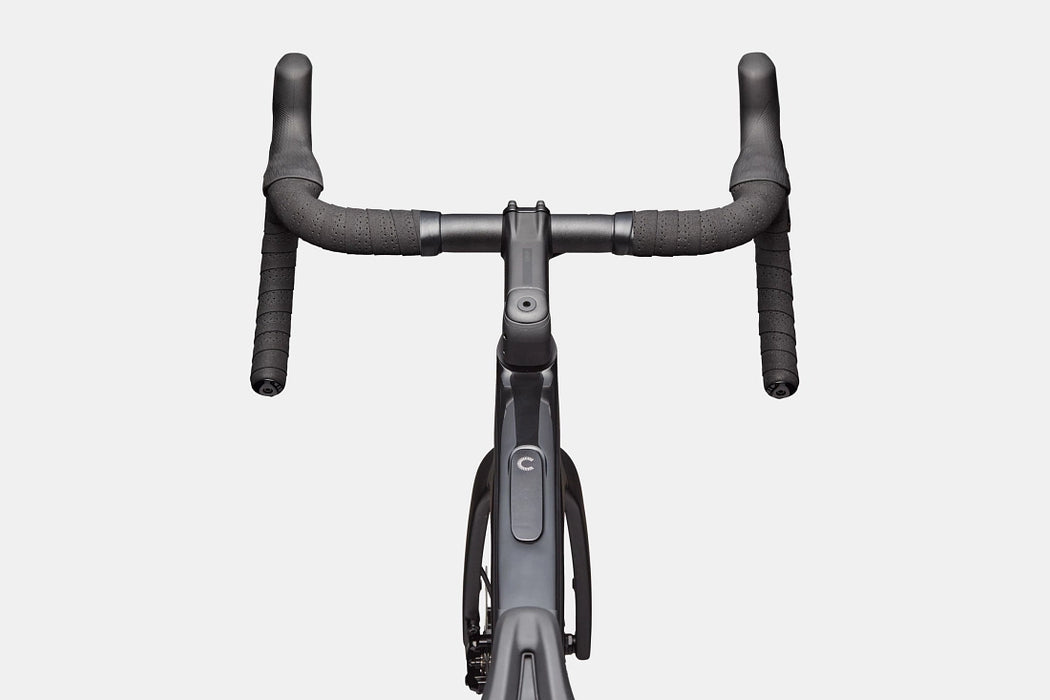

Handlebar
Vision Trimax Compact TT Alloy
-
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
-
Grips
Cannondale Bar Tape, 3.5mm
-
Saddle
Fizik Terra Argo X7, 150mm
-
Seatpost
HollowGram 27, Alloy, 2 bolt clamp, 330mm, 15mm offset
CONNECTIVITY
-
Wheel Sensor
Cannondale Wheel Sensor Compatible (Sensor not included)
EXTRA
-
Extra 1
Large StashBag downtube storage bag
