How Professional Bike Fitting Fixes Knee Pain
Table of Contents
- Cycling Knee Pain Causes: Why Your Body Complains
- Bike Fit Saddle Height Adjustment: The Single Biggest Fix
- Cleat Position and Knee Pain: Small Changes, Big Relief
- Q-Factor, Crank Length, and Knee Tracking
- Professional Bike Fitting Benefits: What to Expect
- Frequently Asked Questions
Last Updated: September 10, 2026
Cycling Knee Pain Causes: Why Your Body Complains
Knee pain is the most common overuse complaint among cyclists, and it rarely starts with the knee itself. Many riders spend months chasing the wrong fix. Understanding how professional bike fitting fixes knee pain starts with one truth: your knee is the messenger, not the culprit.
The knee is a hinge caught between two powerful joints, and it tracks where your hip and ankle send it. When saddle height, cleat position, or stance width force the leg into a compromised line, the knee absorbs the error thousands of times per ride.
Overuse Injury and the Pain Cycle
An overuse injury is tissue damage caused by repetitive stress rather than a single traumatic event. Cycling delivers roughly 5,000 pedal revolutions per hour, each one loading the patellofemoral joint, so a fit error of a few millimeters compounds fast.
The pain cycle works against you: discomfort changes how you pedal, you favor the sore leg, and that altered hip position loads the other knee. Left alone, the problem migrates.
Muscular Imbalance and Leg Length Discrepancy
A muscular imbalance means one muscle group is stronger or tighter than its counterpart, pulling the joint off its natural path. A tight iliotibial band or weak glute medius lets the knee drift inward every stroke.
A leg length discrepancy is a measurable difference between your legs. Even a small one, combined with a fixed cleat, forces one knee to reach further at the bottom of the stroke, where lateral knee pain usually begins.
Watch Out
Ignoring a leg length discrepancy and simply "riding through it" typically makes the shorter leg's knee worse, not better. The body compensates by tilting the pelvis, which then throws off your lower back too.
Bike Fit Saddle Height Adjustment: The Single Biggest Fix
Saddle height changes knee load the most, and it is the first thing a professional fitter measures. Too low compresses the knee at the top of the stroke; too high makes you rock your hips to reach the pedal, irritating the back of the knee.
Setting saddle height by the "heel on pedal" method alone gets you close but ignores your femur and tibia lengths. A fitter uses a goniometer to measure your actual knee angle at the bottom of the stroke and adjusts from there.
Fore-Aft Adjustment and Saddle Setback
Fore-aft adjustment moves the saddle forward or backward relative to the bottom bracket; saddle setback is how far behind it sits. Both change the angle at which your knee meets the pedal.
Too far forward loads the front of the knee; too far back overextends the hamstring and calf, pulling on the back of the joint. The goal is to align your knee over the pedal spindle at maximum power.
Saddle Tilt and Pelvic Tilt
Saddle tilt is the angle of the saddle nose relative to level; pelvic tilt is how your pelvis rotates on it. The two are linked, a nose-down saddle tips your pelvis forward and changes your effective reach.
Nose-up tilt makes riders slide back, increasing the distance the knee travels. A level saddle lets the pelvis stay stable, keeping the knee tracking in a straight line.
Pro Tip
Bring your current saddle height, setback, and cleat position to your fit session, even if you think they are wrong. A fitter can work faster from a known baseline than from a blank slate.
Cleat Position and Knee Pain: Small Changes, Big Relief
Cleat position and knee pain are connected more directly than most riders realize. Your cleat determines your foot's angle, and your foot angle determines your knee's tracking line. A cleat rotated a few degrees off can load one side of the knee for an entire ride.
Float is the rotational freedom a cleat allows before it disengages. More float lets your foot find its natural angle; too little locks the foot and forces the knee to absorb the rotation.
Float, Cleat Wedge, and Stance Width
A cleat wedge is a thin shim under the cleat that corrects foot tilt; stance width is the lateral distance between your feet on the pedals. Both affect knee tracking over the pedal.
If your foot rolls inward or outward, a wedge brings the sole flat against the pedal, and that correction travels up the kinetic chain to straighten the knee's path. Riders needing more stance width often benefit from pedals that allow a wider Q-factor.
Products like the Wahoo SPEEDPLAY ZERO Pedals offer dual-sided entry and a customized fit, while Wahoo SPEEDPLAY Standard Tension Cleats provide continuous 3-axis adjustability. That adjustability is exactly what a fitter needs to dial in cleat position without guesswork.
Shoe and Insole Influence
Your shoe and insole sit between your foot and the cleat, shaping everything above them. A worn or unsupportive insole lets your arch collapse, rotating the knee inward every stroke.

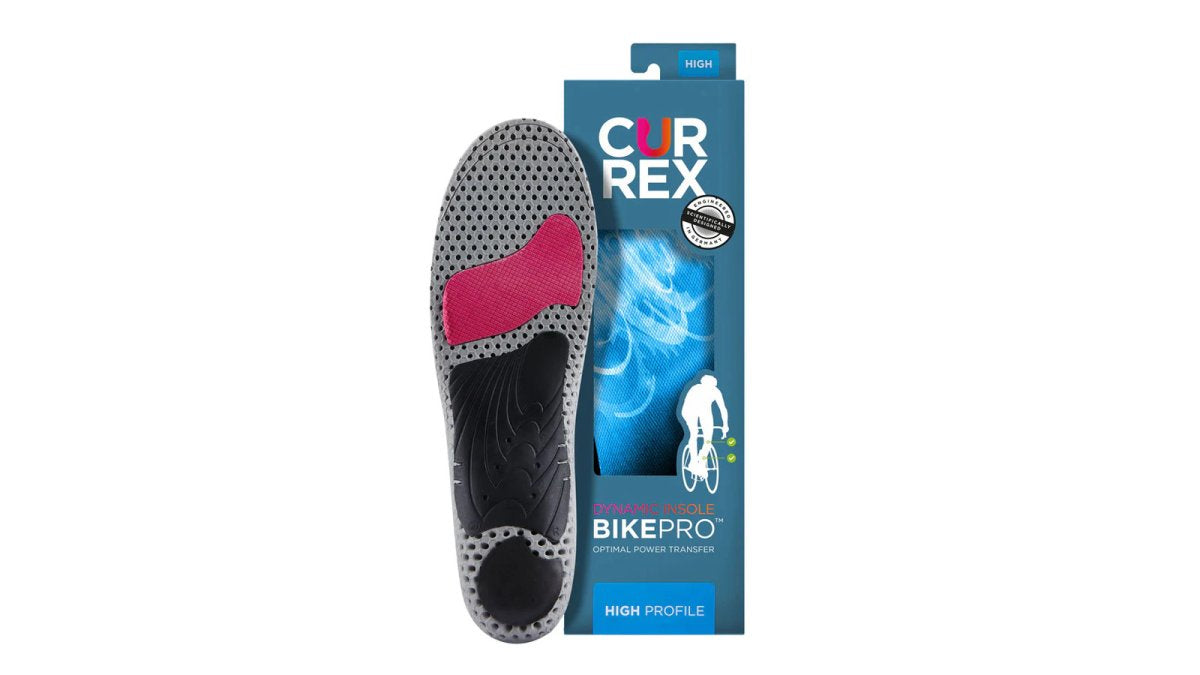

Swapping a stock insole for one with proper arch support can stabilize the whole leg. The CURREX BIKEPRO Insoles are built for cycling, with arch support that locks the heel in place and metatarsal support that aids power transfer while reducing nerve pressure.
Key Takeaway
Cleat, shoe, and insole adjustments are the cheapest knee-pain fixes available. They cost far less than a new bike and often deliver more relief.
Q-Factor, Crank Length, and Knee Tracking
Q-factor is the lateral distance between your pedals, setting how far apart your feet sit. Crank length determines how far your knee travels each revolution and how much it flexes at the top of the stroke. Both feed into knee tracking, the path your kneecap follows as you pedal. When any of the three is off, the knee absorbs the error every stroke.
How to Read Your Own Knee Tracking
You can check tracking at home before booking a session. Set your bike in a trainer or have a partner hold it steady, then pedal easily while watching your reflection.
- Watch the kneecap, not the thigh. Look for the kneecap drifting inward toward the top tube on the downstroke. That inward drift is the single most common tracking fault, and it loads the medial (inner) knee.
- Check the gap between knee and frame. It should stay roughly constant through the stroke. If the knee swings in and out, your stance width or hip stability is the likely cause.
- Look from the front, then the side. Front view reveals lateral drift; side view reveals how far the knee travels forward over the toes at the top of the stroke.
A fitter does the same check with a plumb line from the kneecap or slow-motion video, which catches drift your eye misses at speed.
Q-Factor: Narrow vs. Wide
A Q-factor that is too narrow forces your knees inward every stroke, the "knock-kneed" position that irritates the inner knee and iliotibial band. Too wide and your hips rotate or pelvis rocks to reach the pedals, shifting load to the outer knee and lower back.
Most riders land in the middle, but the right number is individual. Riders with wider hips, a history of hip surgery, or a naturally splayed stance often need a wider Q-factor than stock. The fix is usually a pedal with adjustable stance or pedal washers, not a new bike.
Crank Length: The Adjustment Riders Overlook
Crank length matters most for riders with shorter legs, limited hip mobility, or a history of anterior (front-of-knee) pain. A longer crank increases the knee's flexion angle at the top of the stroke, compressing the patellofemoral joint exactly where front-of-knee pain appears.
Shorter cranks reduce that peak flexion angle and let riders with limited hip range stay more open. The trade-off is slightly reduced leverage, but most practitioners find the knee relief outweighs it for riders who were over-flexed to begin with.
Crank length is not a parameter to change on a hunch. It is measurement-driven, and usually the last adjustment a fitter makes, after saddle height, setback, and cleat position are dialed in.
Pro Tip
If your knees drift inward only when you are tired, late in a long ride, the cause is more likely hip stability than Q-factor. A fitter can tell the difference by watching your tracking fresh versus fatigued.
The Order of Operations Matters
Knee tracking is the output, not the input. A fitter corrects the inputs in sequence: saddle height first, then fore-aft, then cleat position and stance width, then crank length if the numbers call for it. Change them out of order and you chase your own adjustments.
That sequence is why a professional fit produces a stable result: each adjustment is measured against the one before it, so the final knee path is deliberate rather than guesswork.
Professional Bike Fitting Benefits: What to Expect
The clearest professional bike fitting benefit is a measurable reduction in the joint stress that causes pain. A fit session maps your body's actual mechanics, then adjusts the bike to match them, instead of forcing your body to adapt to the bike.
Here is what a typical session covers, and what the fitter decides at each step:
- Intake and history. Your fitter asks where the pain is, when it appears (early in a ride, late, only on climbs), your weekly volume, and any past injuries or surgeries. This narrows the likely cause before a single measurement.
- Physical assessment. Flexibility, leg length, hip range, and foot structure get measured off the bike. A tight hip flexor or collapsed arch shows up here first.
- Baseline capture. Your current position is recorded, saddle height, setback, reach, cleat angle, so changes can be compared against a known starting point.
- Saddle adjustment. Height, setback, and tilt get dialed in first, because every other measurement depends on them.
- Cleat and shoe setup. Float, wedges, and insoles are set to your foot, not to a default.
- Dynamic check. You pedal under load while the fitter watches knee tracking, hip rock, and pedal stroke, often with video.
- Follow-up. Small tweaks after a few real rides lock in the result. A fit is a process, not a single appointment.
One session usually runs one to three hours depending on complexity. Most riders only need a full refit when they change bikes, change position significantly, or recover from an injury.
The Pain Cycle: Why Fear Keeps You Sore
There is a part of knee pain no wrench can fix. Pain changes how you ride: you favor the sore leg, shorten your stroke on that side, and shift weight to the healthy knee. That compensation is protective in the moment and destructive over a season.
It also creates a psychological loop. Riders who have been hurt start guarding the joint, pedaling tentatively, avoiding hard efforts, tensing on descents. Guarding reduces power and changes your position, reintroducing the misalignment the fit just corrected.
Breaking that loop takes two things: a position you trust and a gradual return to load. After a fit adjustment, most practitioners suggest easy, shorter rides for the first week rather than jumping back into old volume. If pain returns during that ramp, that is information, not failure, and worth a follow-up check rather than pushing through.
Off-Bike Strength and Mobility Exercises
Bike fit fixes the machine, not a weak or stiff body, and this is where many riders stall. A fit that is perfect on the day can drift if your hip flexors tighten or your glutes stay dormant.
A simple routine, done two or three times a week, supports the fit:
- Glute bridges to wake up the muscles that stabilize the knee.
- Clamshells with a band to strengthen hip external rotators.
- Hip flexor and hamstring stretches to restore range of motion.
- Single-leg balance work to expose and correct side-to-side differences.
Pair these with the fit adjustments and the knee pain cycle is far more likely to break for good. The fit corrects the bike; the exercises correct the body. Neither finishes the job alone.
Key Takeaway
A professional fit gives you a position your body can hold. Strength and mobility work give you a body that can hold it. Treat them as one plan, not two.
Frequently Asked Questions
Can a bad bike fit cause knee pain?
Yes, a poor bike fit is a leading cause of cycling knee pain. Incorrect saddle height, cleat position, or Q-factor forces your knee to track improperly, leading to overuse injuries like patellofemoral pain. A professional bike fitting addresses these issues by adjusting your setup to match your biomechanics, often resolving pain within weeks.
How does saddle height affect knee pain?
Saddle height directly influences the angle of your knee at the bottom of the pedal stroke. Too low, and you increase compressive forces on the kneecap; too high, and you may rock your hips, causing lateral knee pain. A proper bike fit saddle height adjustment ensures an optimal knee bend, reducing strain and improving power transfer.
When should you see a professional for a bike fit?
See a professional if you experience persistent knee pain, numbness, or discomfort that doesn't improve with rest. Also, after buying a new bike, changing pedals or cleats, or if you're training for a big event. A professional bike fitting benefits riders of all levels by optimizing ergonomics and preventing injury.
What is the 75% rule in cycling?
The 75% rule is a rough guideline for saddle height: your knee should be bent at about 75% of its full extension when the pedal is at the bottom. However, it's not precise for everyone. A professional bike fit uses dynamic analysis to find your optimal angle of knee flexion to prevent knee pain.
Knee pain that keeps you off the bike is a solvable problem, not a permanent condition. At Playtri Sarasota, our professional bike fitting service measures your actual mechanics and adjusts saddle height, cleat position, and stance width to match them, while our repair and service team keeps your equipment dialed in. Whether you are chasing a personal best or just want to ride without wincing, our team can help. Visit Playtri Sarasota and get fitted for a ride that finally feels right.
