Colnago V4RS - Built to Win
Available to order, some sizes available in store. Please contact us for delivery options.
This bicycle has been engineered and built todo just one thing: win. The Colnago V4Rs is theresults of years of research and tests in theWorld Tour. Improved stiffness, better aerodynamics, weight decrease.
A winning bicycle must be stiff, light,aerodynamic, comfortable and robust. TheV4Rs is today's best bike by mix of all thesecharacteristics. Only one objective: to win.
Stiff and responsive where you need it
The V4Rs has peculiar carbon laminations, designed and tested with particular attention to the areas of the frame most subject to tension. Pedalling power is transmitted to the frame immediately and effectively, more than any other bike in the World Tour.
Unparalleled ridebilty and precision

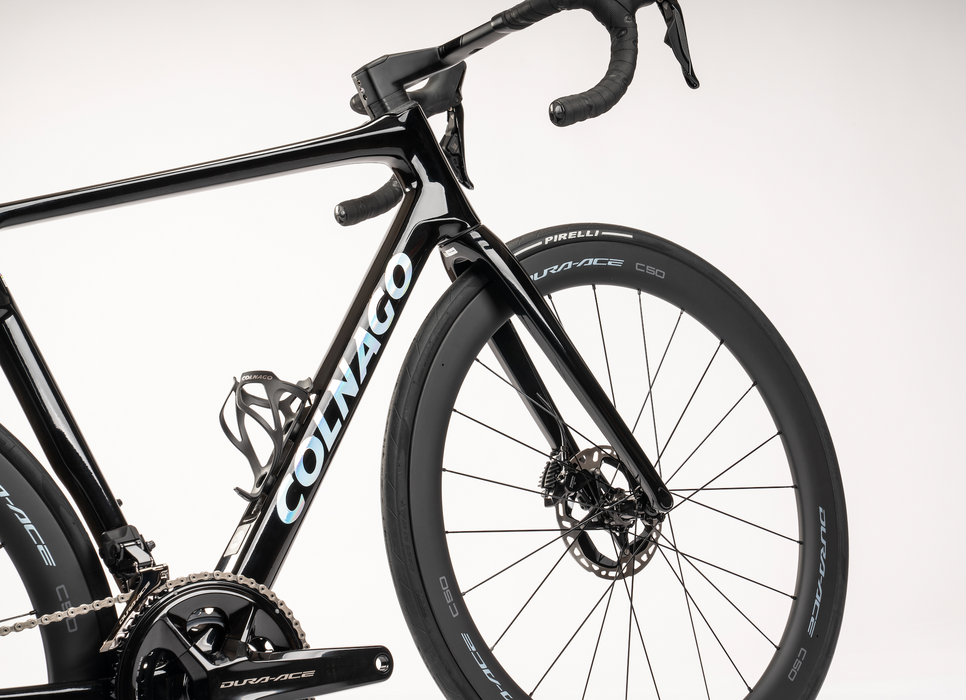

The lightened and revised fork makes the bike much more rideable downhill, in groups and on technical courses.

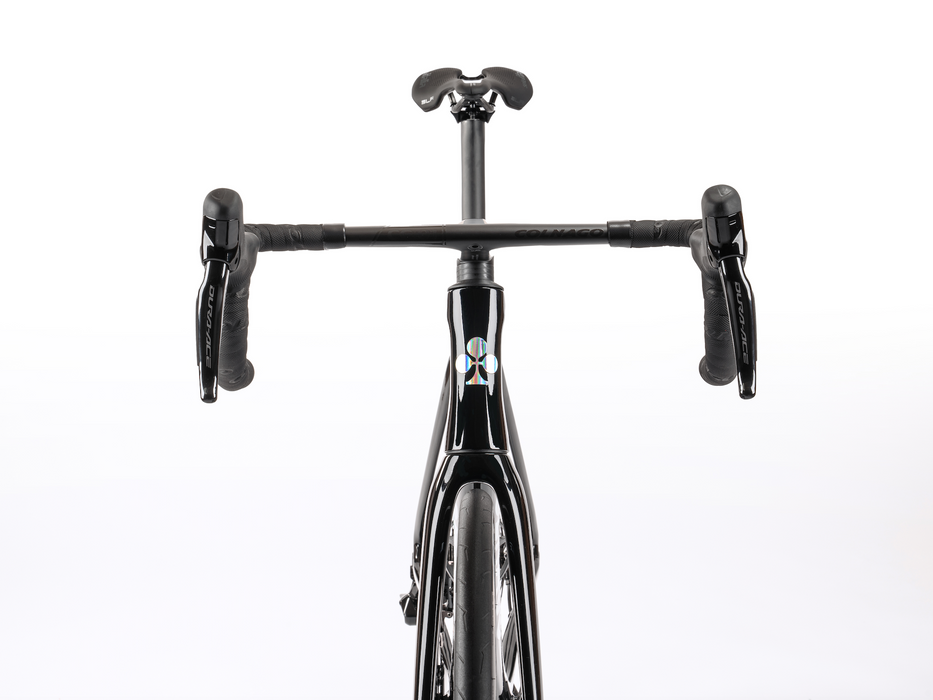

Narrower front area
The front area of the bike has been optimised with lines that follow and facilitate airflow. The V4Rs is the bike you want to be on when you are alone, in a breakaway, on your way to victory.
Wheels up to 32 mm
The bicycle is evolving: more space for tyres allows us to meet the needs of all cyclists and to be compatible with the largest number of wheels and tyres on the market.
Ceramic Speed SLT headset
The headset bearings are treated with Ceramic Speed's SLT technology, which virtually cuts out the need for any maintenance during the life of the product
Easier bike fitting
The increase in reach and stack between the different geometries is linear: This allows for an easier bike fitting to enable the rider to find the perfect riding position.
What is the difference between C68 Road and V4Rs?
Although both models are top-of-the-range carbon racing bikes with very similar geometries, there are big differences. The construction technique of the V4Rs frame is monocoque; the C68 is a modular frame composed of several interlocking parts. The philosophy is also radically different: the V4Rs is a bike designed and optimised for use by professional racers. More rigid and lighter, it suits highly powerful racers with extremely flexible muscles and joints. The C68, on the other hand, is designed for maximum riding pleasure: a snappy and responsive bike that calls for speed, with the perfect balance that a racing bike should have between enjoyment and performance.
How do you measure the size of the V4Rs and how does it differ from other manufacturers?
The size of the V4Rs, like every Colnago, is measured in cm and represents the length of the seat tube. The size is also indicated on the serial number, located under the water bottle between the two rivets. Colnago sizing does not follow the same logic as other manufacturers. We advise you to reach out for any sizing questions and discuss your specific fit.
Weight - Size 485 unpainted frame: 798g
Weight limit - This model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg
Frame kit:
Frame (material) - Colnago V4Rs Monocoque carbon frame
Fork (material, section notes) - Carbon fork for disc brakes, integrated cables, 1"1/8 section
Headset - ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
Seatpost - Carbon seatpost, 0.15 offset, "D-Shape" section
Through axles - Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
Drivetrain - Shifting system

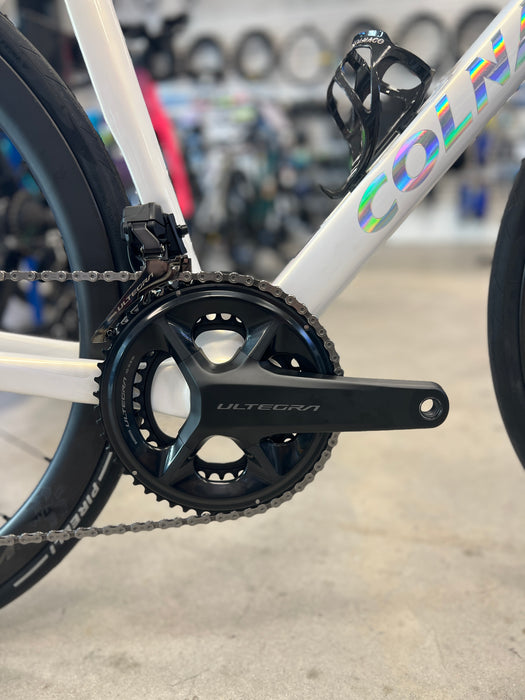

Shimano Ultegra R8170 Di2 Disc - 12v
Front derailleur - Shimano FD-R8150
Rear derailleur - Shimano Shadow RD-R8150
Chain - Shimano CN-M8100 12V
Option 1 (Default) - 52-36T
Option 2 - 50-34T
Cassette
Option 1 (Default)
T47 Shimano with Steel Bearings
Option 1 (Standard for sizes 420 - 485)
170 mm
Option 2 (Standard for sizes 510 - 530)
172.5 mm
Option 3 (Standard for sizes 550 - 570)
175 mm
Brakes
Brakes - Shimano Ultegra R8170, 160 mm Front / 140 mm Rear, RT-CL900 rotors
Disc size - 160 mm Front/ 140 mm Rear - RT-CL800 rotors
Brake lever - Shimano ULTEGRA ST-R8170
Brake caliper - Standard Flat Mount
Wheels
Option 1
Fulcrum Racing Wind 420 DB
Option 2
Fulcrum Racing 600 DB
Fulcrum Wind 420 DB
Carbon (FF80)
Fulcrum Racing 600 DB
Alluminium
Fulcrum Wind 420 DB
42 mm
Fulcrum Racing 600 DB
24 mm
Fulcrum Wind 420 DB
23 mm
Fulcrum Racing 600 DB
20 mm
Fulcrum Wind 420 DB
Aluminum, Low flanges. Sealed bearing, Adjustable
Front: HH12-100 - Rear: HH12-142
Fulcrum Wind 420 DB
Pirelli PZero Race 700x28
Fulcrum Racing 600 DB
Pirelli P7 Sport 700x28
Components

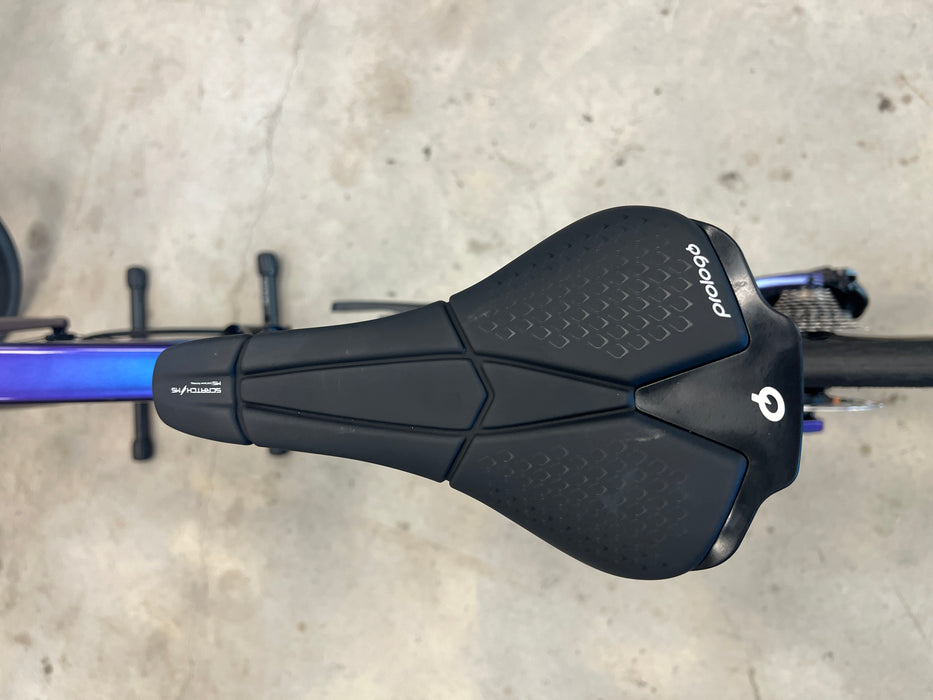

Saddle - Prologo Scratch M5 Tirox - Selle Italia Novus Boost EVO TI316 Superflow

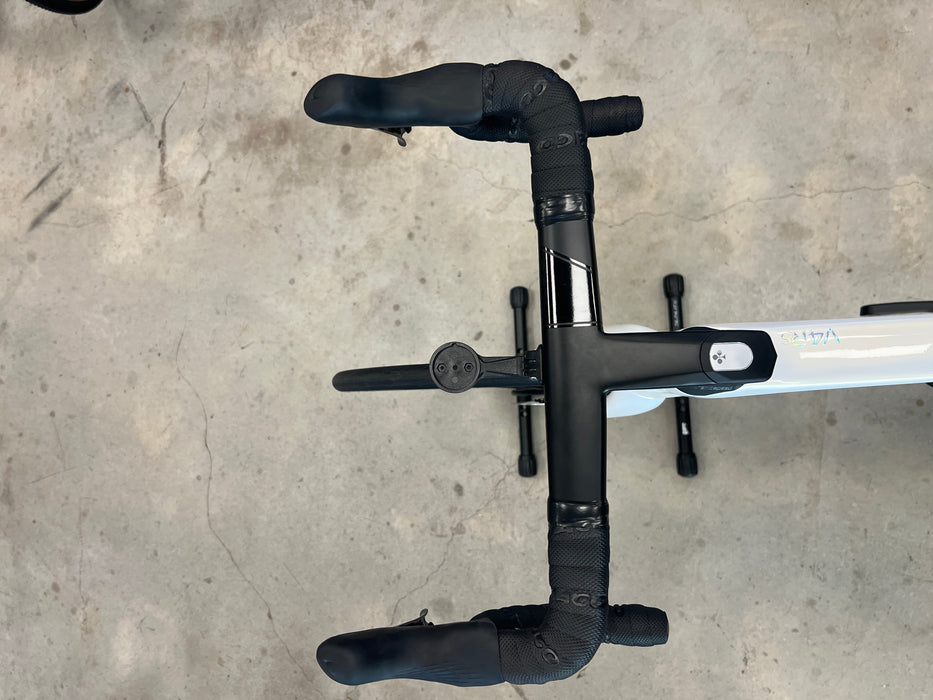

Handlebar - Colnago CC.01 integrated Cockpit - regular geometry.
Stem - CC01 integrated cockpit
Handlebar Tape - Colnago Grip Black or Colnago WT23 (for WT24 color scheme only)

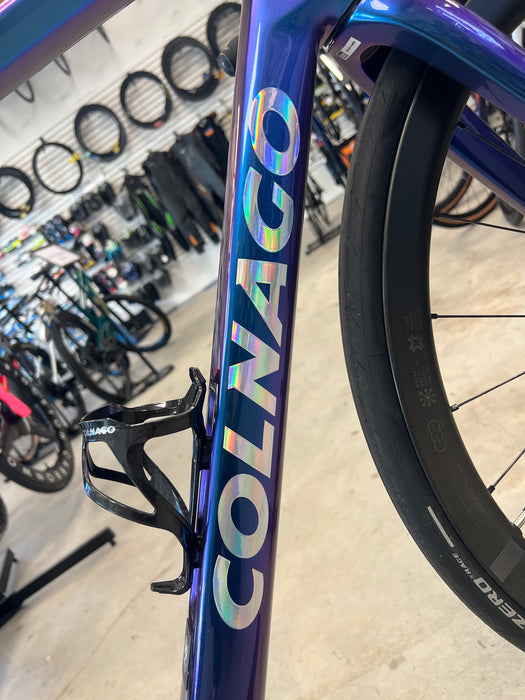

Bottle cage - Colnago Matt Black (1x)

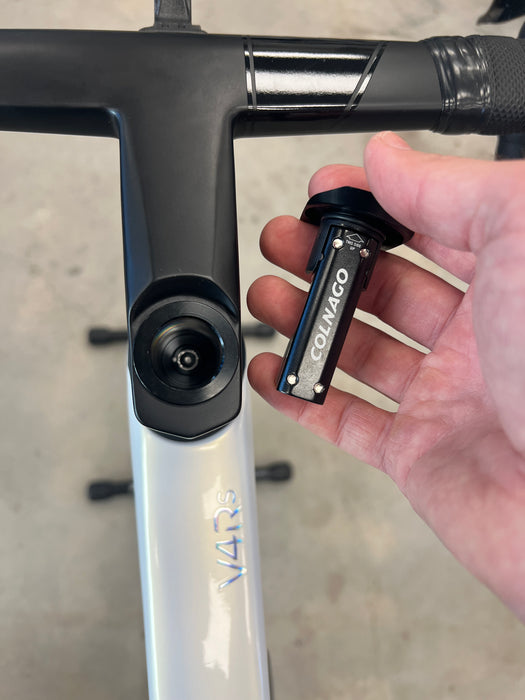

Other accessories - Cockpit integrated multitool.
